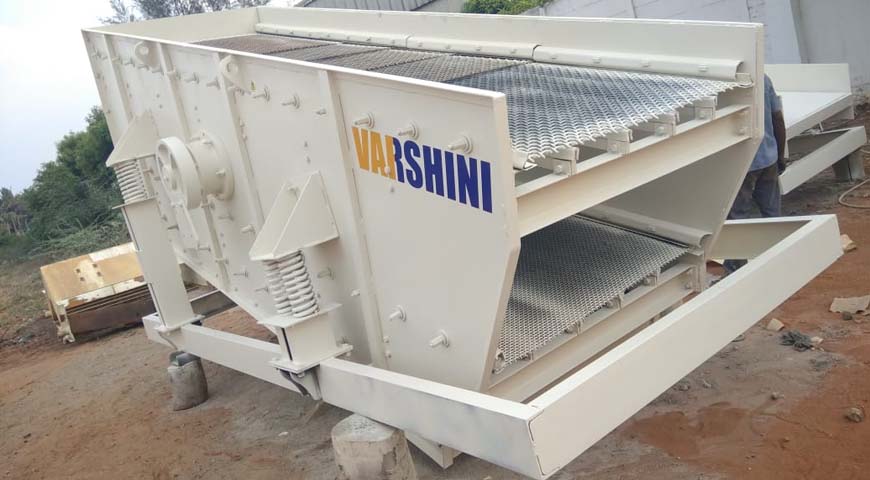

A vibrating screen low noise, high efficiency and fast network required for 3 - 5 minutes, the whole structure of the closure applies the materials screening filter. Rotary screen is vertical vibration motors for the excitation source, the electrical, are installed at both ends of the eccentric weights, electrical rotary motion into horizontal, vertical, the tilt of the three yuan movement, and then transmitted to the screen surface movement. Adjust the upper and lower ends of the phase angle, the screen can change the surface of materials trajectory.

Use and Maintenance

• The machines should be installed in electrical protective equipment.
• The machine running early Anchor Bolt inspection at least once a day to prevent loosening.
• When the motor rotation dorection does not meet the requirements, can adjust power phase sequence.
• Motor lubrication should ensure that good, each running about two weeks supplementary lithium-based grease (ZL-3) once during refueling, by adding suitable oil Cup Lithium Grease. When using sealed bearings, motor oil cup had not been installed.
• A total of 1,500 hours after the operation, should check the bearings, if serious injury to be replaced immediately.
